Spring End Grinder Machines

GRM

(4 Models)​

  • Servo controlled semi-automatic spring end grinder machines are used for horizontal crush or down-feed
  • Automatic height adjustment in coordination with the number of revolutions of the grinding wheel increases capacity and efficiency
  • Programmable control technology for loading table simplifies the loading of the machine​Automatic unloading and semi-automatic compensation of the grinding wheel wear increases productivity​
  • HMI CNC control unit makes set up and operation easy to use
spring grnder machine"
spring grnder machine"

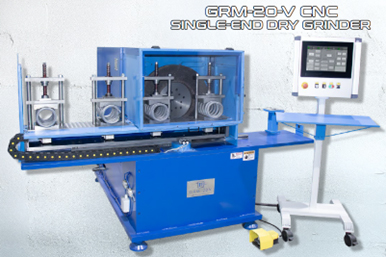

Single End Dry Grinder – GRM-20-V CNC

(1 Product)

  • Grind Large and long spring up to 250 mm OD (9.842”) and wire sizes 1mm-20mm (0.394”-0.787.
  • The dry vertical grinding machine features an oscillating grinding stone rather than the springs oscillating.
  • Compact design allows for easy installation on the shop floor.
  • Grinding time and thickness are programmed in just three steps.
  • While grinding one set of springs, the operator can prepare a second set of springs.
  • Shorter set up time results in higher productivity.
  • Custom Tooling is available
